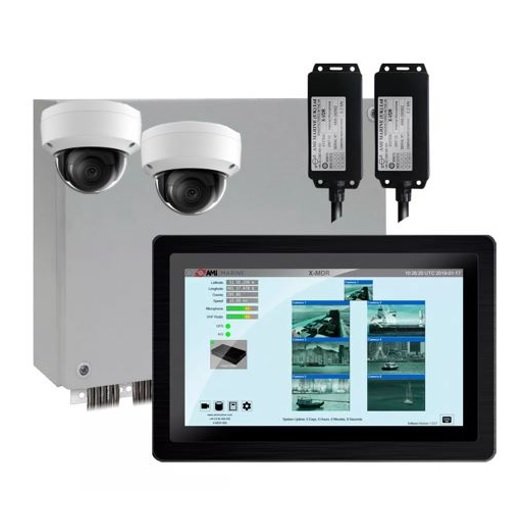

X-MDR CCTV Mini Data Recorder System



AMI Marine’s new X-MDR with CCTV recording has been designed for smaller vessels that do not require a full S-VDR/VDR system.

X-MDR CCTV & DATA RECORDER

IP camera inputs (Camera included in the full system).

  • VHF and bridge audio recording.
  • Image recording such as Radar, ECDIS, Chart Plotter, etc.
  • NMEA data recording for the position, speed, heading recording, etc.
  • AIS data recording. Therefore, allowing accurate information on the replay of data.

REAL-TIME SURVEILLANCE

  • 13.3” full-colour capacitive touch screen display.
  • Live view of data and also audio recording.
  • Intuitive, user-friendly software interface.
  • Visual CCTV video feeds in real-time.

TAILORED TO YOUR REQUIREMENTS

  • 9x NMEA inputs (from 4800 to 38,400 baud).
  • 6x Bridge Audio inputs.
  • 2x VHF Audio inputs.
  • Up to 8 IP camera inputs.
  • 2TB Storage (approx.11-60 days of data when recording camera streams).

REPLAY SOFTWARE

  • Simple to use replay software. Also, with a mapping display of the vessel’s movements.
  • Easy and straightforward download process.
