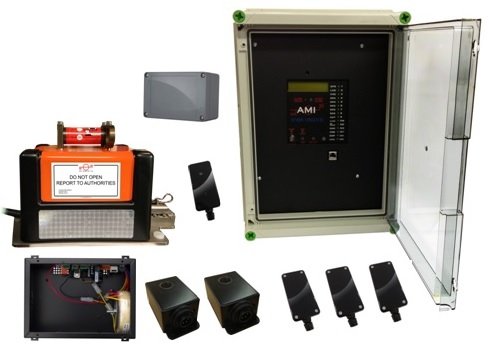

VDR / S-VDR VR2272-B

VR2272-B

BERKMARIN has continued to manufacture high quality innovative marine electronic navigational products for many years, becoming a leading authority in voyage data recording and interfacing techniques.

Using cutting edge technology AMI’s product range is both reliable and adaptable to meet the customers needs. With global logistic backup AMI’s products and services are second to none.

Spearheading the market with the VR2272 Voyage Data Recorder, the company has established an impressive customer base including many maritime blue chip companies.

With the new mass S-VDR retrofitting demand, AMI VR2272-B has been developed, with its key factors of :
– pricing
– simplicity
– flexibility

The VDR/S-VDR VR2272-B solution is simplified yet highly effective and most importantly allows great savings over that of the full VDR.

• VDR = voyage data recorder
• S-VDR = simplified voyage data recorder
• VR2272-B s-VDR uses the same hardware&software as the VDR. It’s the same thing!
• S-VDR just has to record less information than the full VDR, reducing the cost of interfacing and cost of installation.

S-VDR can use a float-away EPIRB memory capsule as an option to fixed one.

TECHNICAL SPECIFICATIONS

DATA INPUT:

• 1 channel for interfaces or AIS at 38400 baud.
• 8 channels NMEA 0183, IEC 61162 GPS, heading, speed & echo sounder channels
  are assigned and filtered to reduce the amount of data passed.
• Pluggable terminal block connectors AUDIO INPUT:
• 3 audio ports combined to one channel
• 3 audio ports combined to a 2nd channel
  – One of these is transformer isolated
  – It is usual to use this for VHF radio
• Microphone 100 x 50 x 25 mm
• 6 way pluggable terminal block connectors
